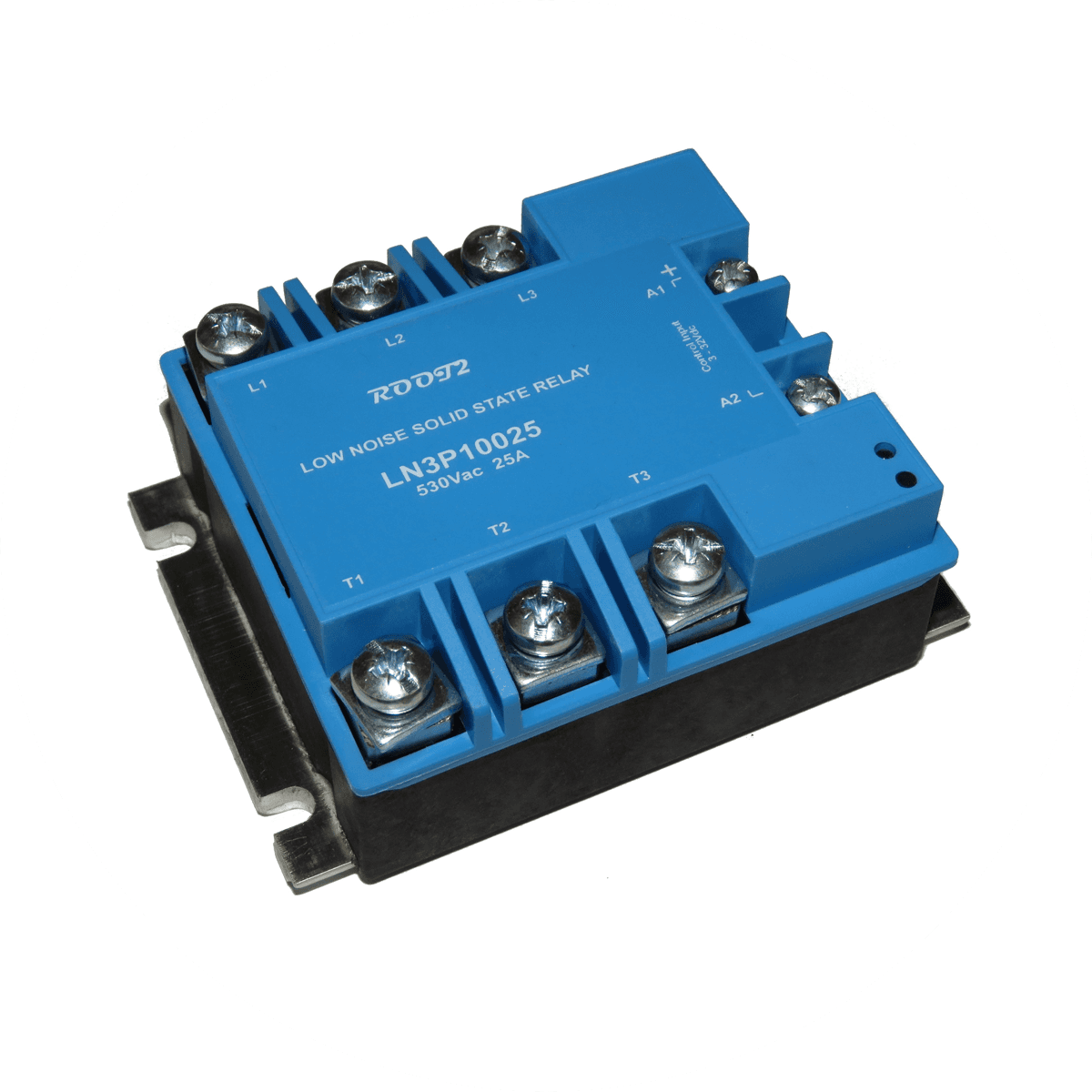

LN3P10015 - 50


3 PHASE SSR
Output Load Specification
Operating Voltage: 530 Volts rms
Load current @ 25°C: 15 to 50 Amps (rms)
Operating temperature: -20 to +85 °C
Transient overvoltage: 1,200 Volts rms
Isolation, (input – output): 2,500 Volts rms


Control Input Specification
Control Voltage, VF : 3.5 to 32 Volts dc
Control current, (Max) IF : 25 mAmps
Reverse voltage, (Max) : 3 Volts dc
